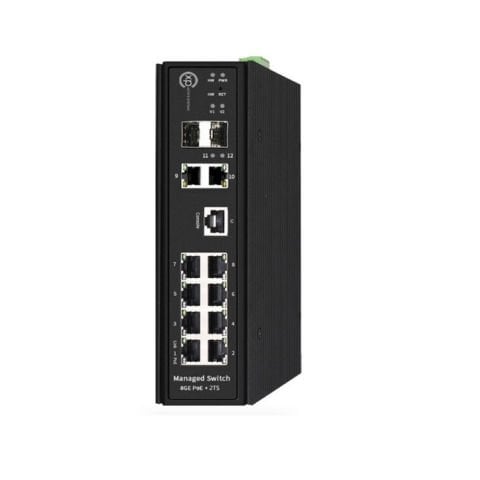

XPS-I7120-12PT industrial solutions 8 port 10/100/1000 PoE + 2 port 1000T + 2 port 100/1000 SFP L2+ Managed Industrial Switch
Model No XPS-I7120-12PT
Port Capacity :12 Port Gigabit Industrial Managed PoE Switch
Port Types 8x 10/100/1000Base-T RJ45 copper ports (PoE) + 2x
1000Base-T 2x 100/1000 SFP ports+1 RJ45 console
port +1 DI Port + 1 DO Port
Switching Capacity 24 Gbps , wire speed (non-blocking)
Forwarding Rate 19.90 Mpps
MAC Table 16K
Jumbo Frames 10K
Memory 8M
Auto-negotiation √
Auto MDI/MDIX √
Store-and-Forward √
DC Power Input 47-55V Total Power Consumption 735W Operating/Storage Temperature -40 - 75 ℃ / -50 - 85 ℃ Operating Humidity 5% - 95% , non-condensing MTBF > 255.000 hours
CE, FCC, RoHS, ISO 9001, EN55022, EN61000-6-4, EN61000-3-2, EN61000-3-3, EN61000-6-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60068-2-6, IEC60068-2-27 Ea
