WEDGE100S-32X - 100GBE Data Center Switch

Anahtarlama Kapasitesi: 3.2 Tbps

Yönlendirme Hızı: 4.7 Bpps

Broadcom BCM56960 Tomahawk 3.2 Tbps, COM-E CPU module based on Intel Broadwell-DE D1508 Processor 8GB SO-DIMM DDR4 2400MHz with ECC

Giriş Voltajı: AC90-264V

Çalışma ve Depolama Sıcaklığı: 0 - 45 ℃ / -40 - 70 ℃

Nemli Ortamda Çalışma Aralığı: 10% - 95%

CE Mark, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, CB, UL/CUL, IEC 68-2-14, IEC 68-2-36, IEC 68-2-6, 68-2-29, ISTA 2A, RoHS-6 Compliant

Ürüne ait datasheet'e ulaşmak için tıklayınız.

The  Edgecore  Wedge100S-32X  is  a  commercial  product  based  on  Facebook's  Wedge100S  design.  Facebook designed the Wedge100S as a 32 x 100 GbE top-of-rack switch optimized for web-scale data centers, and submitted the design to the Open Compute Project. Edgecore's parent company, Accton Technology, performed the design validation  for  Facebook  and  manufactures  the  Wedge100S  for  Facebook’s  deployment.  Edgecore  now  offers  the Wedge100S as a fully supported commercial product to enable network operators to increase capacity with 25 G and 100 G networking.

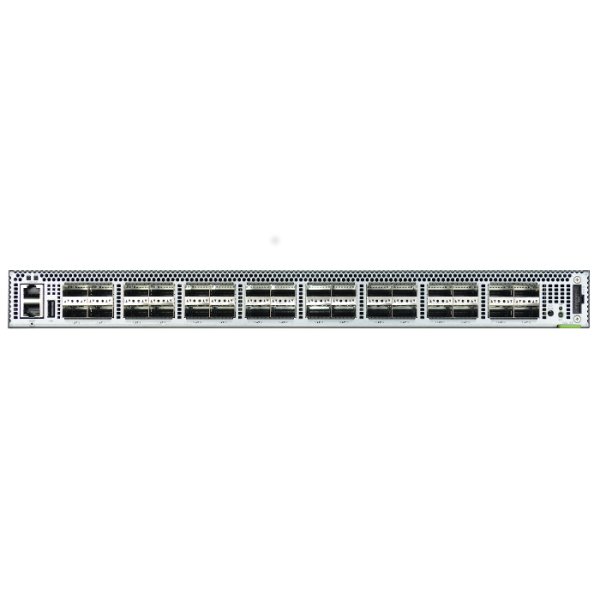

The Wedge100S switch provides 32 QSFP28 ports that can each run at 100 GbE/40 GbE, or as 4 x 25 GbE/ 4 x 10 GbE/2 x 50 GbE through breakout cables. The Wedge100S design is based on the Broadcom BCM56960 Tomahawk 3.2 Tbps switch silicon. The Wedge CPU subsystem is the COM-E CPU module, based on the Intel Xeon Broadwell-DE D1508 processor. The use of this standard CPU system, coupled with the BMC (Baseboard Management Controller) on the Wedge main board, enables the Wedge100S to be provisioned and managed using similar tools used by data center operators for their server and application environments.
