AS7712-32X - 100GBE Data Center Switch
32 Port 100GbE Open Network Switch
Anahtarlama Kapasitesi: 3.2 Tbps
Yönlendirme Hızı: 4.7 Bpps
Broadcom BCM56960 Tomahawk 3.2 Tbps, Intel Broadwell-DE D1508 İşlemci tabanlı COM-E CPU modülü
Giriş Voltajı: AC120-240V
Çalışma ve Depolama Sıcaklığı: 0 - 45 ℃/ -40 - 70 ℃
Nemli Ortamda Çalışma Aralığı: 10% - 90%
CE Mark, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, CB, UL/CUL, IEC 68-2-14, IEC 68-2-36, IEC 68-2-6, 68-2-29, ISTA 2A RoHS-6 Compliant
Ürüne ait datasheet'e ulaşmak için tıklayınız.

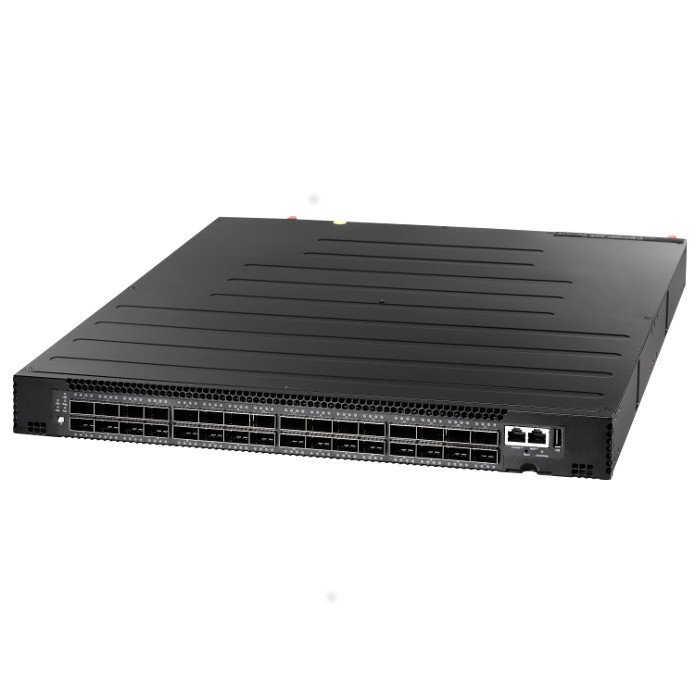

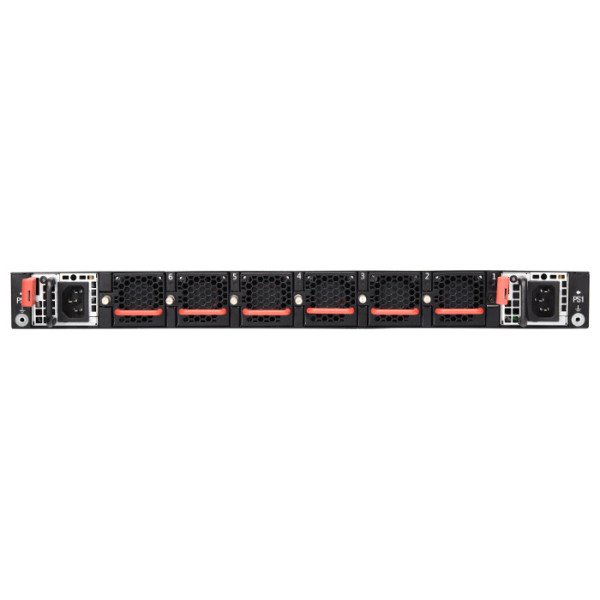

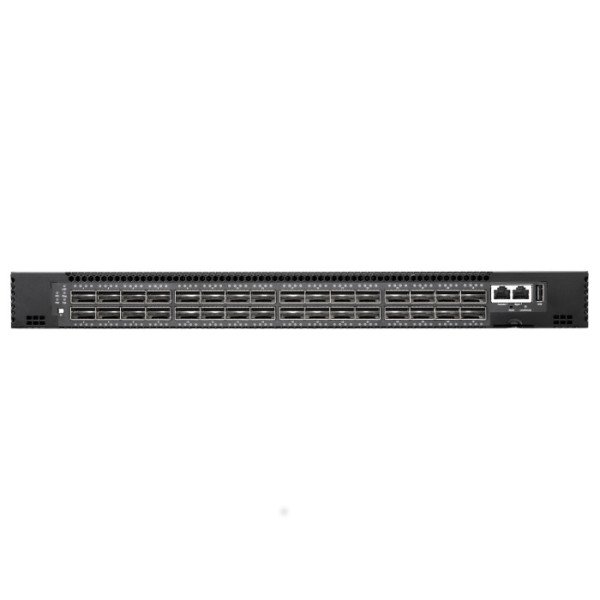

The Edgecore AS7712-32X switch is Top-of-Rack (TOR) or spine switch for high-performance data centers. In a compact 1RU form factor, the switch provides line-rate L2 and L3 switching across the 32x QSFP28 ports, supporting up to 32 x 40/100 GbE, 64 x 50 GbE, or 128 x 10/25 GbE connections. The AS7712-32X can be deployed as a TOR switch supporting 10/25/50 GbE to servers with 40/50/100 GbE uplinks, or as a spine switch supporting 40/50/100 GbE spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE) which supports the installation of compatible Network Operating System software, including the open source options Open Network Linux and OpenSwitch, plus commercial NOS offerings.
