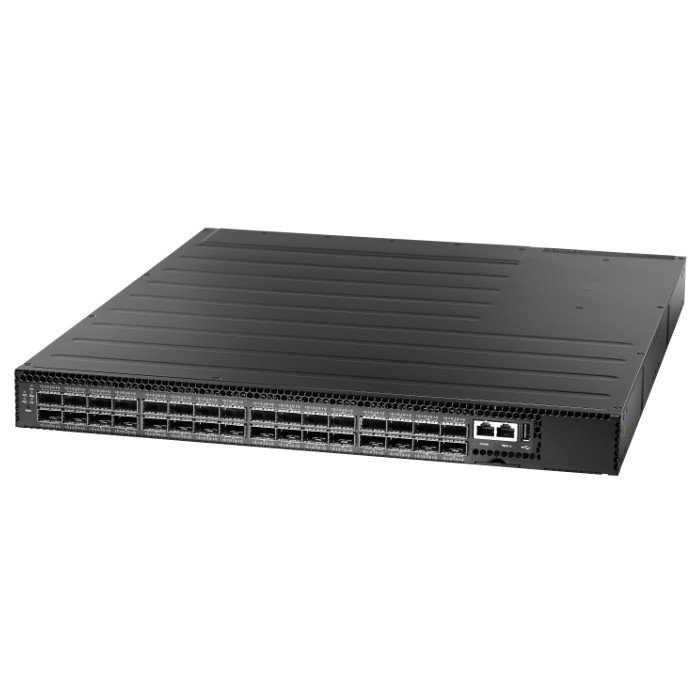

AS6712-32X - 32 Port 40GbE Data Center Switch
AS6712-32X
32 Port 40GbE Data Center Switch
Anahtarlama Kapasitesi: 1.28 Tbps
Yönlendirme Hızı: 1.44 Bpps
Broadcom BCM56850 Trident II 1.28 Tbps, Intel Atom C2538 quad-core 2.4 GHz x86 processor 8 GB SO-DIMM DDR3 RAM with ECC
Giriş Voltajı: AC120-240V
Çalışma ve Depolama Sıcaklığı: 0 - 40 ℃/ -40 - 70 ℃
Nemli Ortamda Çalışma Aralığı: 5% - 95%
CE Mark (EN55022 Class A), FCC Part 15 Class A, VCCI, CB, EN 60950, UL/CUL, IEC 68-2-14, ISTA 2A, RoHS-6 Compliant, IEC 68-2-36, IEC 68-2-6, IEC 68-2-29
Ürüne ait datasheet'e ulaşmak için tıklayınız.
The Edgecore AS6712-32X is a Top-Rack or spine switch for high-performance data centers. In a compact 1RU form factor, the switch provides line-rate L2 and L3 switching across 32 x QSFP+ ports, supporting 32 x 40 GbE connections or 96 x 10 GbE + 8 x 40G connections. The AS6712-32X can be deployed as a TOR switch supporting 10 GbE or 40 GbE server connections, or as a spine switch supporting 10 GbE or 40 GbE spine interconnects. The AS6712-32X is a bare-metal switch loaded with the Open Network Install Environment (ONIE), which supports the installation ofcompatible open source and commercial Network Operating Systems for different network use cases and requirements.
