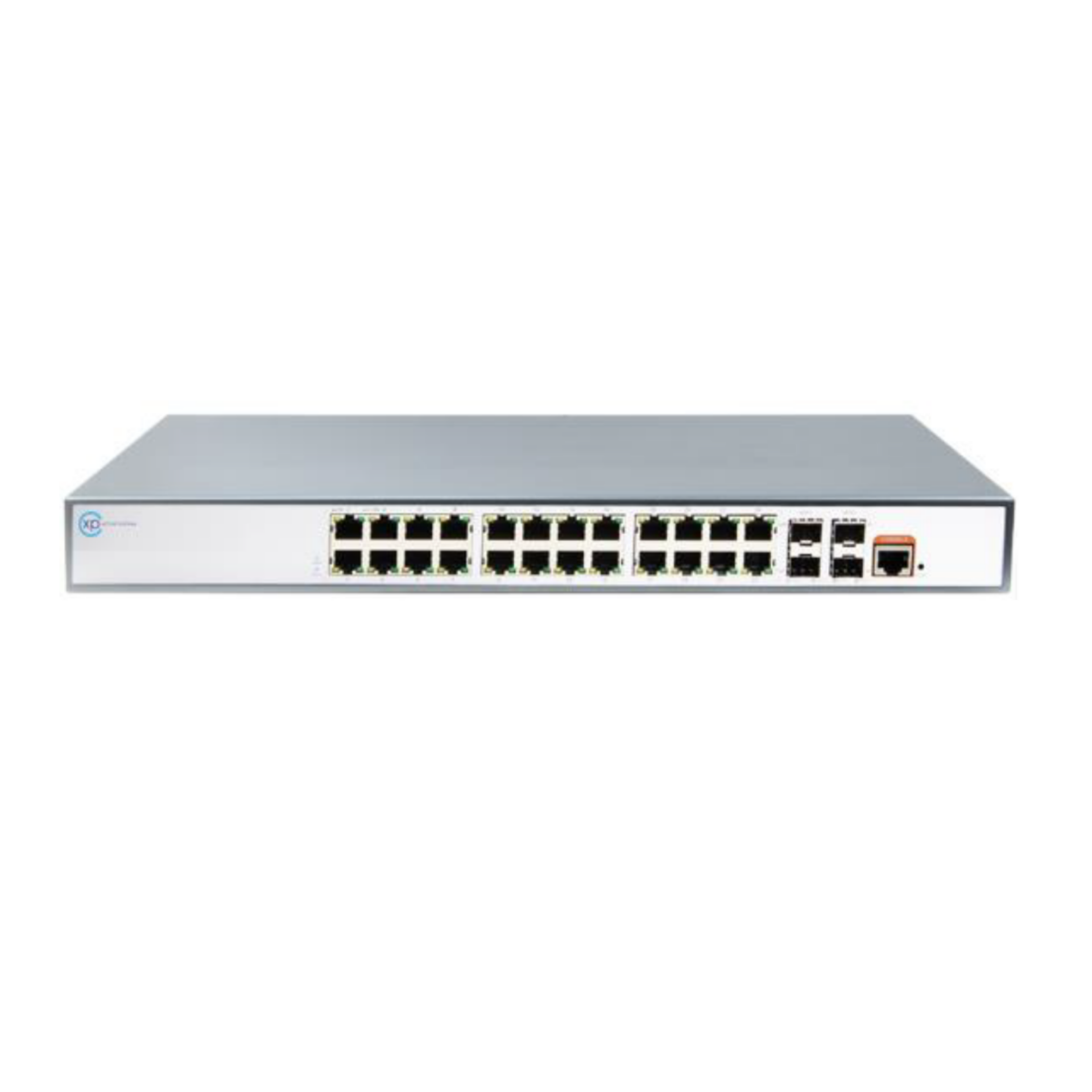

XPS-1220-28 24 port 10/100/1000 + 4 Gigabit 100/1000 SFP L2+ Managed Switch
0 yorum
Model No:
XPS-1220-28 Port Capacity
28 Port Managed Switch Port Types
24x 10/100/1000Base-T RJ45 copper ports + 4 Gigabit 100/1000 SFP ports + 1 RJ45 console port
Performance
Switching Capacity
56 Gbps, wire speed, (non-blocking) Forwarding Rate
41,77 Mpps MAC Table
16K Jumbo Frames
9KB Memory Latency
4M
18 ms
Layer 2+ Features
Spanning Tree Protocol (STP)
IEEE802.1d Spanning Tree Protocol
IEEE802.1w Rapid Spanning Tree Protocol
IEEE802.1s Multiple Spanning Tree Protocol
Loop Back Detection IGMP Snooping
IGMP v1/v2 VLANs
Support up to 4K VLANs
Port-based VLAN
802.1Q tag-based VLAN Link Aggregation (TRUNK)
IEEE 802.3ad LACP Ethernet Ring Protection Switching
G.8032 ERPS Flow Control
IEEE802.3x
Ürüne ait datasheet'e ulaşmak için tıklayın.
